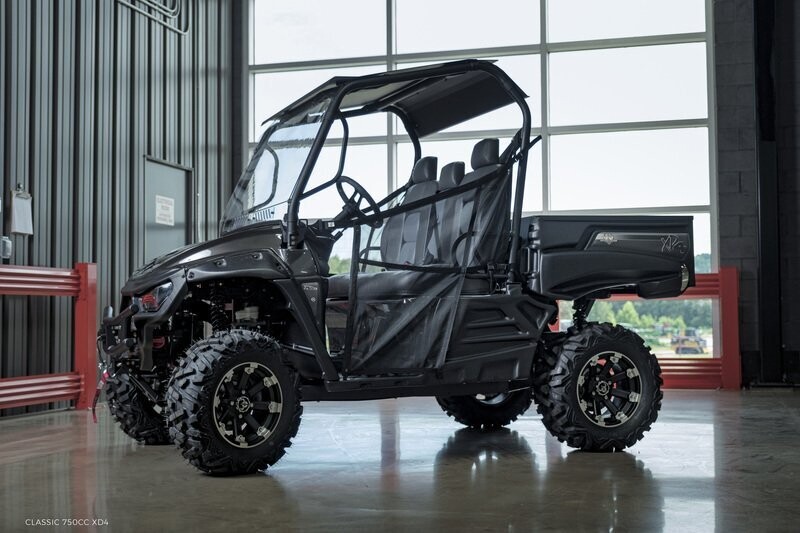

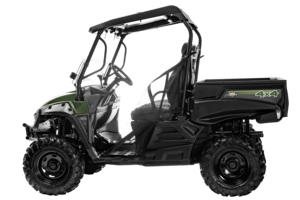

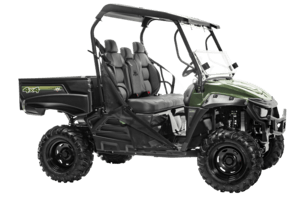

INTIMIDATOR CLASSIC 750
+3

INTIMIDATOR CLASSIC 750

00073
$0.00
In stock
1
Product Details

CORE COMPONENTS

CALL STORE FOR UNIT AVAILABILITY AT 731-271-5262

FRAME

1.5" x 3" Powder Coated Fusion-Bonded Solid American Steel Bridge Frame
BODY
Automotive Quality Acrylic Plastic
FRONT TIRES
27x9x14 – 6 ply
REAR TIRES
27x11x14 –6 ply
WHEELS
14'' Steel Wheels (Aluminum XD4)
FRONT & REAR SUSPENSION
Dual A – Arm Independent
STEERING
Rack and Pinion
BRAKING SYSTEM
4 Wheel Hydraulic Disc
PARKING SYSTEM
2 Wheel Gear Lock
SEATING
3 Forward Facing Occupant Bench Seat
BED DUMP
Manual with Gas Assist
CARGO BED SPACE
36" x 56.5" x 13"
AUXILIARY POWER
12 Volt Auxiliary Plug
HITCH
2'' Rear Receiver Standard
FUEL CAPACITY
9 Gallons
WARRANTY
1 year bumper to bumper, 3 year engine, 5 year frame
DISPLAY
4" Color Display w/MPH, Hours, Temp, Time, Shift Position, Fuel, & Battery
REAR DIFFERENTIAL
Push Button Locking Rear Differential
DRIVE SYSTEM
ENGINE
23HP Kohler® Fuel Injected Engine
BORE X STROKE
83 mm X 69.9 mm
COMPRESSION RATIO
9.1:1
DISPLACEMENT
750cc
CARBURETOR
Electronic Fuel Injected Throttle Body
FINAL DRIVE
Shaft Driven
AUTOMATIC CVT
Low/Hi/Neutral/Reverse/Park
DRIVE SYSTEM
2WD, Electronic 4WD Selection
COOLING
Air Circulation
STARTING
Electric Start
FUEL TYPE
87 Octane Gasoline (10% Ethanol Max)
ENGINE OIL TYPE
Intimidator SYN 5W-40
SPEED
Up To 35 MPH
MEASUREMENTS
LENGTH
113''
WIDTH
63''
HEIGHT
78''
WHEELBASE
77''
FRAME CLEARANCE
12''
SUSPENSION TRAVEL
10'' Total Suspension Travel
CURB WEIGHT
1,561 lb
GVWR
3,300 lb
CARGO BED CAPACITY
1,200 lb
VEHICLE PAYLOAD
1,600 lb
TOWING CAPACITY
2,100 lb
TURNING RADIUS
103"
SAFETY
PROTECTION
1.75'' Diameter Tubing Five Piece ROPS
FRONT PROTECTION
1.75'' Diameter Tubing Bumper/Brush Guard
PASSENGER RESTRAINTS
3 Point DOT Approved Restraint Belts & Nets
SHIFT INDICATOR
5 Position Gear Indicator
HEADLIGHTS
High and Low Beam LED Headlights
BRAKE/TAIL LIGHTS
Standard
SKID PLATE
Steel
STORAGE
Glove Box and Two Stainless Cup Holders
